When you need three phase
A three-phase inverter matches a three-phase supply. It is the right choice for larger homes, factories, offices and anywhere running heavy motor loads. If your connection is single-phase, the single-phase range is what you want.
The two models

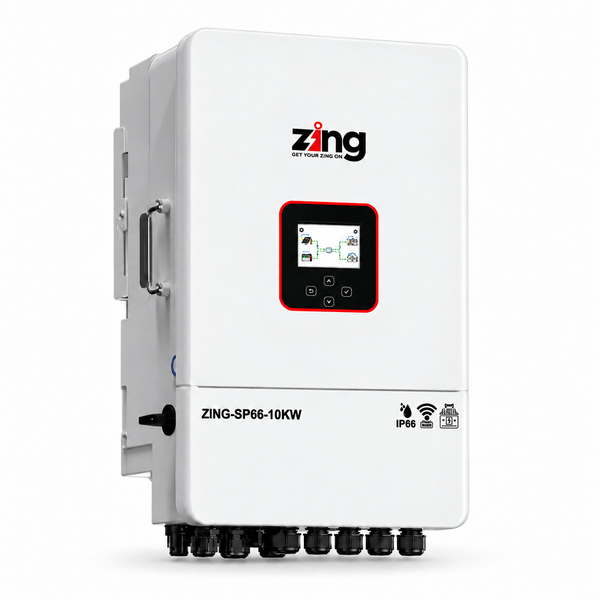

- 12KW - 12,000W rated output, up to 24,000W PV input, 250A maximum charging and discharging
- 15KW - 15,000W rated output, up to 30,000W PV input, 280A maximum charging and discharging
Both accept up to 1,000V of PV with a 200-800V MPPT operating range across dual trackers. The higher voltage ceiling means longer panel strings than the single-phase models allow, which usually means less cabling on a large array.
Batteries
Both run a 40-60V battery bank and take lithium-ion or lead-acid. For lithium at this scale, see the low voltage battery range.
Installation
Both carry an IP66 rating, so they are dust-tight and withstand powerful water jets - they can be wall-mounted outdoors without additional shelter.
