One unit instead of three
An all-in-one system puts the inverter, the MPPT solar charge controller, the AC charger and the battery into a single enclosure. There is no separate battery bank to size, cable or house, which makes it the simplest way to get backup power into a home or small office.
The range
- PE-BUSS-1.5K - 1,500W output, 1.28kWh battery (12.8V 100Ah), 30-350V MPPT
- PE-BUSS-3K - 3,000W output, 2.56kWh battery (25.6V 100Ah), 50-400V MPPT

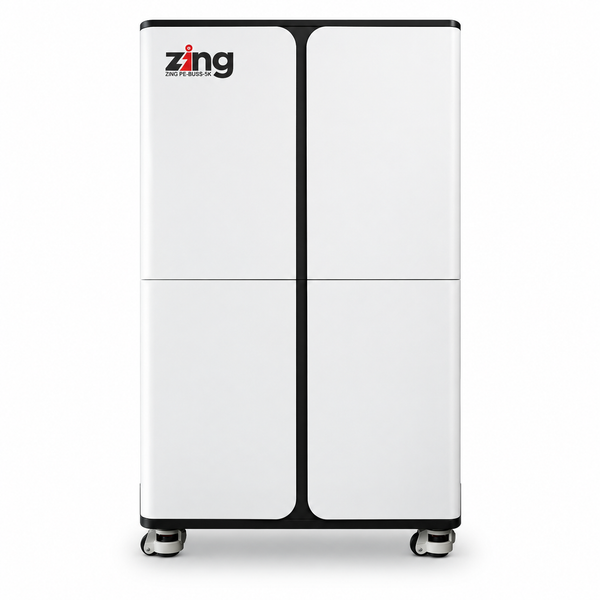

- PE-BUSS-5K - 5kW with solar, 8kWh battery (25.6V 314Ah), 60-450V MPPT
- PE-BUSS-6.5K - 6.5kW with solar, 15kWh battery (51.2V 300Ah), 60-450V MPPT
Choosing between them
Two numbers decide it. Output in kW is what you can run at once; battery capacity in kWh is how long you can run it. A unit with high output and a small battery covers short outages at full load; a larger battery carries a lighter load through a long one.
The 1.5K and 3K are portable, with three AC outlets, USB and Type-C ports, wheels and a handle. The 5K and 6.5K are fixed installations with Wi-Fi monitoring.
Or build it separately
If you need more power or more storage than these offer, a separate hybrid inverter and battery bank can be sized freely and extended later.
