Is single phase right for you?
Most homes and small commercial premises in Pakistan run on a single-phase connection, and a single-phase inverter is the match for that. If your supply is three-phase, or your load is heavy enough to need one, see the three-phase range instead.
Choosing a size

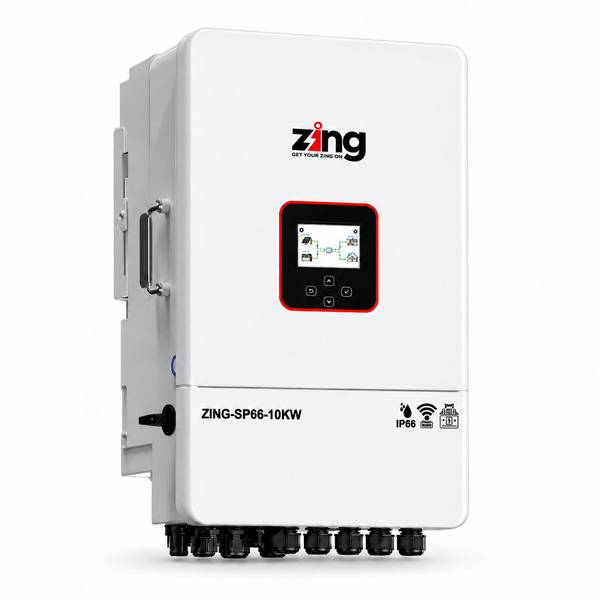

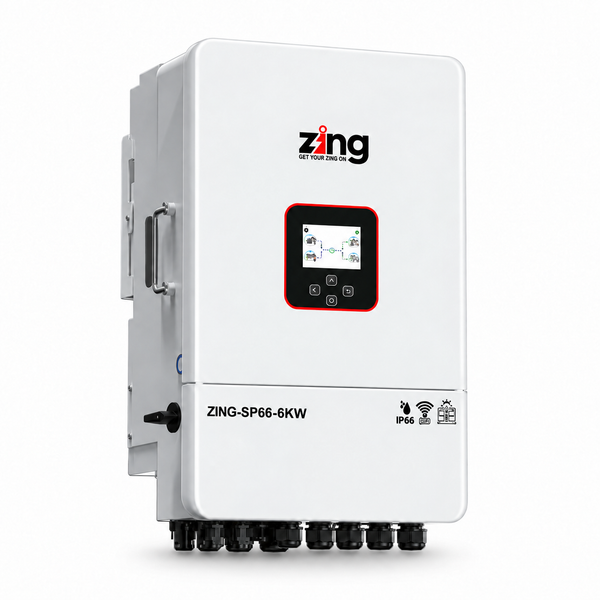

Rated output is the figure to start from: 6KW, 8KW or 10KW. Then check the solar side, because the two do not scale together. The 6KW IP66 accepts up to 12,000W of PV, the 10KW IP66 up to 20,000W, while the 6KW IP54 takes up to 9,000W.
Then choose the protection rating
Every model here is hybrid, so it runs the house, charges the battery bank and works with both lithium and lead-acid. What separates them is where they can be installed.
- IP66 - dust-tight and rated for powerful water jets, so it can be mounted outdoors
- IP54 - dust and splash protected, for indoor or sheltered positions
