What IP54 covers
IP54 means the casing is protected against dust and against water splashing from any direction. That is enough for a garage, a utility room, a covered balcony or any position under shelter. It is not rated for direct exposure to rain.
The range
Each model gives pure sine wave output at up to 98% efficiency and runs on a 48V battery bank, with lithium and lead-acid both supported.

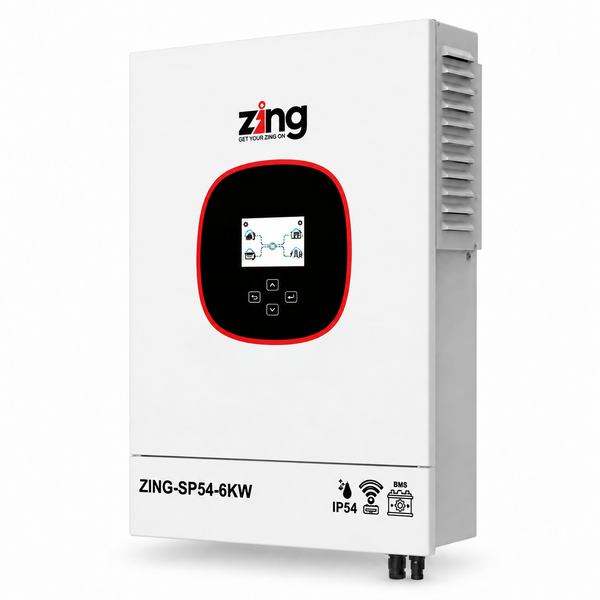

- 6KW - up to 9,000W solar input, 60-450V MPPT range, 120A charging
- 10KW - dual MPPT trackers, 60-450V MPPT range, 160A charging
IP54 or IP66?
The difference is where the unit can be installed, not what it can do. If it will be mounted outdoors or anywhere exposed to rain, choose the IP66 range instead. For a sheltered installation, IP54 does the same job for less.
